RUR1S1560S

15 A, 600 V, Ultrafast Diode

The RUR1S1560S is an ultrafast diode with low forward

voltage drop. This device is intended for use as freewheeling

and clamping diodes in a variety of switching power supplies

and other power switching applications. It is specially suited

for use in switching power supplies and industrial

application.

Symbol

Features

Ultrafast Recovery trr

= 60 ns (@ IF

= 15 A)

? Max Forward Voltage, VF

= 1.5 V (@ T

= 25°C)

? 600 V Reverse Voltage and High Reliability

? Avalanche Energy Rated

? RoHS Compliant

Applications

Switching Power Supplies

Power Switching Circuits

General Purpose

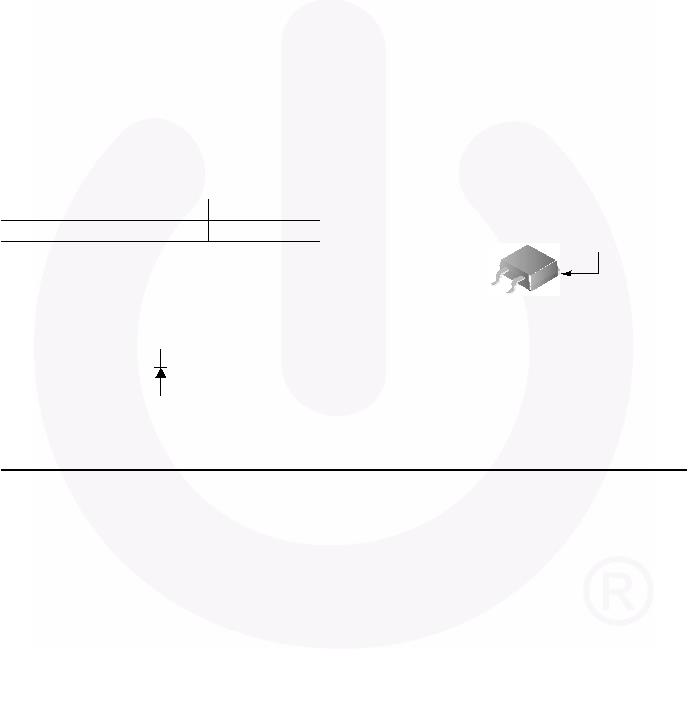

Packaging

JEDEC TO-263

Ordering Information

PART NUMBER PACKAGE

BRAND

RUR1S1560S

TO-263-3L

RUR1560

NOTE: When ordering, use the entire part number. Add the suffix 9A

to obtain the TO-263 variant in tape and reel, i.e. RUR1S1560S9A.

CATHODE

(FLANGE)

ANODE

CATHODE

Absolute Maximum Ratings

= 25

oC, Unless Otherwise Specified

SYMBOL

PARAMETER

RUR1S1560S

UNIT

VRRM

Peak Repetitive Reverse Voltage

600

VRWM

Working Peak Reverse Voltage

600

DC Blocking Voltage

600

IF(AV)

Average Rectified Forward Current

IFRM

Repetitive Peak Surge Current

(20

kHz

Square Wave)

IFSM

Nonrepetitive Peak Surge Current

(Half

wave 1

Phase 60

Hz)

200

Power Dissipation

100

EAVL

Avalanche

nergy (1

mH)

TJ, TSTG

Operating and Storage Temperature

-55 to 175

Tpkg

Maximum Temperature for Soldering

Leads

0.063

in (1.6

mm) from Case for 10

Package Body

for 10s,

See

Techbrief

TB334

300

260

THERMAL SPECIFICATIONS

RθJC

Thermal Resistance Junction to Case

1.5

oC/W

RθJA

Thermal Resistance Junction to Ambient

NOTES:

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the

device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

Data Sheet

November 2013

www.fairchildsemi.com

?2001

Fairchild

emiconductor Corporation

RUR1S1560S9A

Rev.
